Pioneer GM-D9705 GM Series 2,000-Watt 5-Channel Class D Amp

The Pioneer GM-D9705 GM Series 2,000 Watt 5 Channel Class D Amp features a rugged frame design with a high-quality, textured flat panel to combine strength and simplicity. The GM-D9705 5 channel automotive amplifier is rated at 2,000 watts max, with the A and B channels rated at 75 watts x 4 (RMS) and the subwoofer output rated at 500 watts at 2 ohms (RMS). Compared to similarly priced multichannel amplifiers, the variable crossover networks on the GM-D9705 offer increased flexibility and give listeners more control. Use the wired bass boost knob to add 0 to 18 more dBs. This car amp has block terminals for a cleaner installation and direct wire contact to minimize resistance.

• A/B channels: 75W RMS x 4 @ 4Ω
• A/B channels: 100W RMS x 4 @ 2Ω
• SW channels: 350W RMS x 1 @ 4Ω
• SW channels: 600W RMS x 1 @ 2Ω
• A/B channel freq resp: 10Hz–50kHz
• SW channel freq resp: 10Hz–500Hz
• Signal-to-noise ratio: 94dB
• Load imp: 2Ω–8Ω
• A/B channel crossover freq: LPF/HPH 40Hz–500HZ
• A/B channel slope: -12dB/octave
• SW channel crossover freq: LPF 40Hz–500Hz
• SW channel slope: -12 dB, -24dB/octave
• Bass boost remote @ 50Hz (0db–18dB)
• High-level input with turn-on sensor
• 2-/4-/6-channel low-level RCA inputs

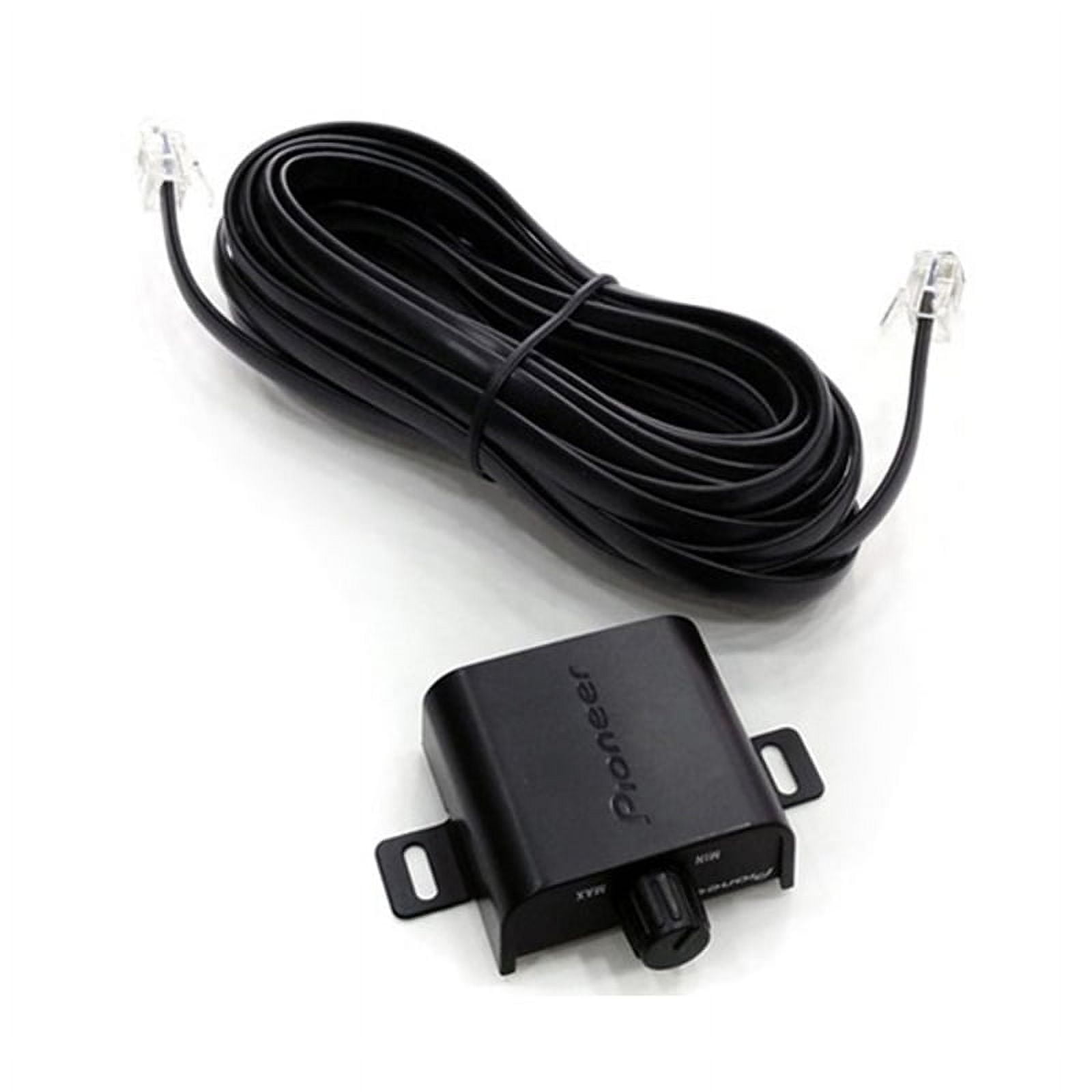

• Includes wired bass boost remote
